INDUSTRIAL EXHAUST FANS

Manufacturer of Exhaust Fans - Industrial Exhaust Fan, Heavy Duty Industrial Exhaust Fan offered Sanwood India. Industrial exhaust fans are used in environments like shops, warehouses, rooftops, greenhouses and garages. Look at the best industrial fans here. We are leading Manufacturer , Wholesaler and Exporter of Industrial Exhaust Fans. To give the best ventilation experience in industries, Standard Electricals has come up with top quality industrial fans instilled with a high performance motor.

Get Best Quote

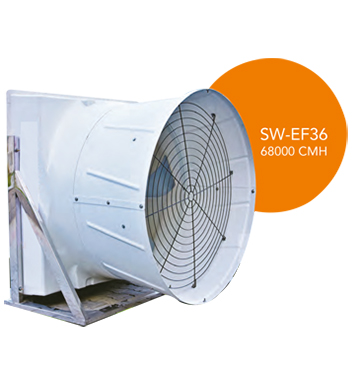

SW-EF36 68000 CMH

Approx Price: Rs: 66,500

Product Details:

FAN SPEED
SINGLE SPEED
R.P.M.
750RPM
Phase
3
Max Air Flow (F /M)
40000
Max Air Flow (M/H)
68000
Electric Load (kw)
1.9
Noise (Db)
58
Voltage (V/F)
415/50
Impeller Size (M/M)
1260
Product Size (MM)
1460 x 1460 x 1168

Features:

  • Hosing: Outer Cabinet SMC Fiber Glass
  • Iron Wire Guard front Side with PVC Quoted
  • Motor draft Cover .. PVC
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink
  • Motor legs : Fiber Glass Material
  • Exhaust Fan Shutter: PVC Material
  • Blades.. Aluminium die Cast with oval shape blades
  • Product Weight: 72Kg

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure

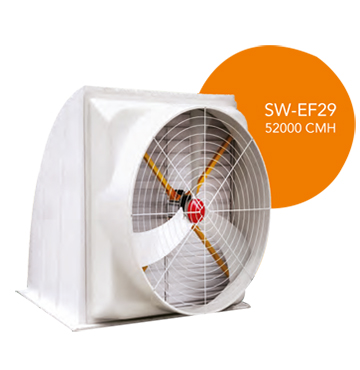

SW-EF29 52000 CMH

Approx Price: Rs: 61,500

Product Details:

FAN SPEED
SINGLE SPEED
R.P.M.
580RPM
Phase
3
Max Air Flow (F /M)
30588
Max Air Flow (M/H)
52000
Electric Load (kw)
1.6
Noise (Db)
55
Voltage (V/F)
415/50
Impeller Size (M/M)
1260
Product Size (MM)
1460x1460x1168

Features:

  • Hosing: Outer Cabinet SMC Fiber Glass
  • Iron Wire Guard front Side with PVC Quoted
  • Motor draft Cover .. PVC
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink
  • Motor legs : Fiber Glass Material
  • Exhaust Fan Shutter: PVC Material
  • Blades.. Aluminium die Cast with oval shape blades
  • Product Weight: 72 Kg

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure
Get Best Quote
Get Best Quote

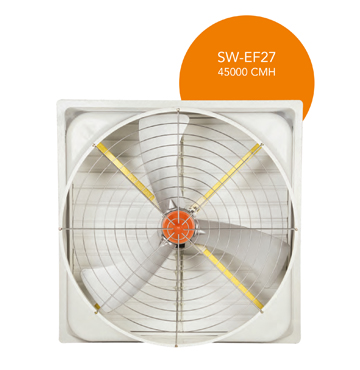

SW-EF27 45000 CMH

Approx Price: Rs: 57,500

Product Details:

FAN SPEED
SINGLE SPEED
R.P.M.
750RPM
Phase
3
Max Air Flow (F /M)
26470
Max Air Flow (M/H)
45000
Electric Load (kw)
1.2
Noise (Db)
55
Voltage (V/F)
415/50
Impeller Size (M/M)
1060
Product Size (MM)
1260x1260x1080

Features:

  • Housing: Outer Cabinet SMC Fiber Glass
  • Iron Wire Guard front Side with PVC Quoted
  • Motor draft Cover .. PVC
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink
  • Motor legs : Fiber Glass Material
  • Exhaust Fan Shutter: PVC Material
  • Blades.. Aluminium die Cast
  • Product Weight: 65Kg

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure

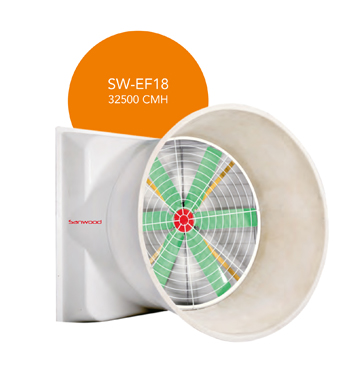

SW-EF18 32500 CMH

Approx Price: Rs: 47,500

Product Details:

FAN SPEED
SINGLE SPEED
R.P.M.
750RPM
Phase
3
Max Air Flow (F /M)
19117
Max Air Flow (M/H)
32500
Electric Load (kw)
1
Noise (Db)
58
Voltage (V/F)
415/50
Impeller Size (M/M)
900
Product Size (MM)
1060x1060x1050

Features:

  • Hosing: Outer Cabinet SMC Fiber Glass
  • Iron Wire Guard front Side with PVC Quoted
  • Motor draft Cover .. PVC
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink
  • Motor legs : Fiber Glass Material
  • Exhaust Fan Shutter: PVC Material
  • Blades.. Fiber Glass blades
  • Product Weight: 47.5 Kg

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure
Get Best Quote
Get Best Quote

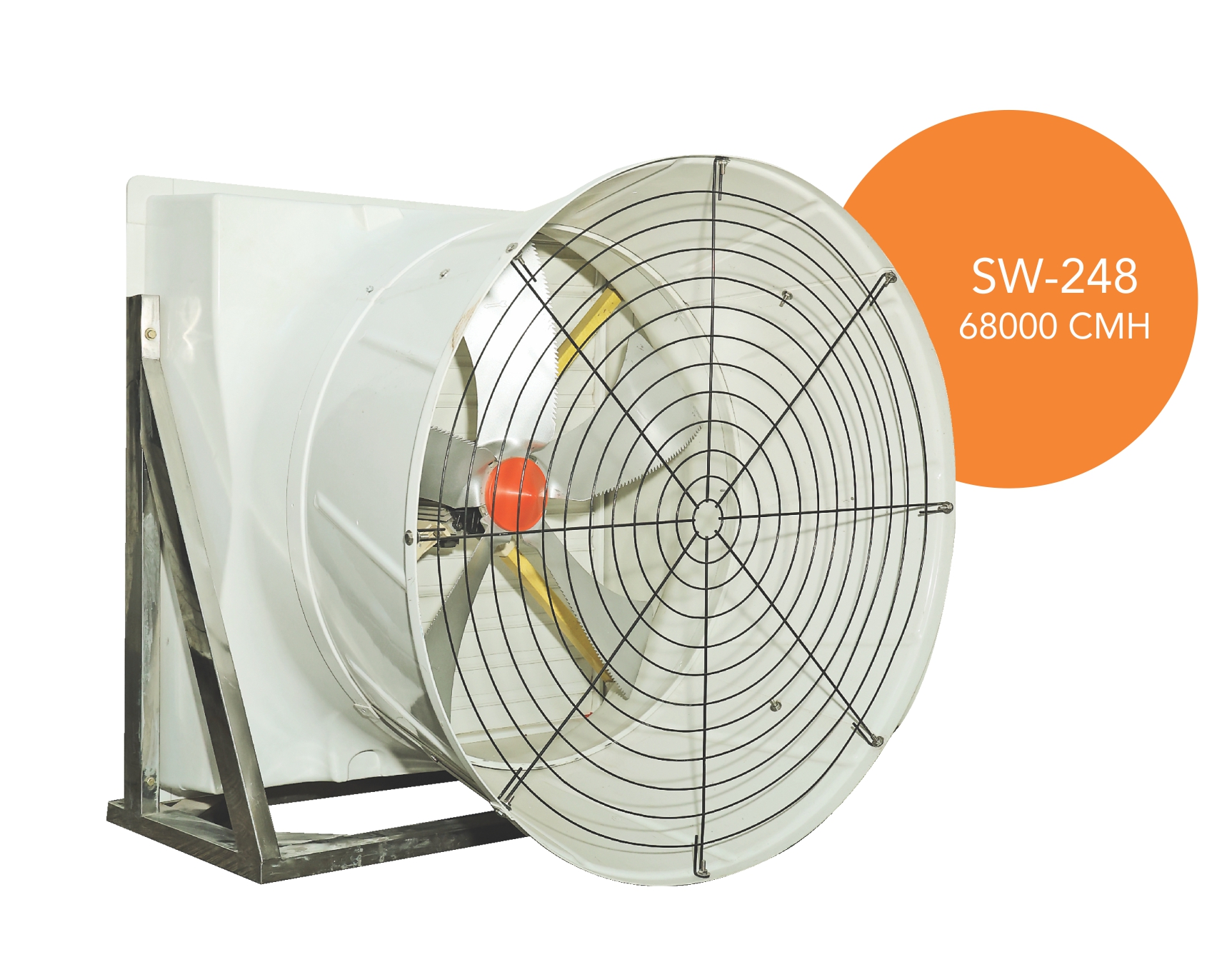

SW - 248

Approx Price: 78,500.00

Product Details:

Hosing
Outer Cabinet SMC Fiber Glass
Air Flow
68000 CMH (Cubic Meter Per Hour)
Fan Blade & Hub material :
ADC 12
Motor
AC 630 RPM Heavy Duty Direct Driven
Voltage
415V, 3Ph.
Electric Load (kw)
2.2
Size
1460 X 1460 X 1180 mm
Noise
58 dB
Motor draft Cover
PVC
Motor Make
ABB
Motor legs
Fiber Glass Material
Exhaust Fan Shutter
PVC Material
Product wt.
80 Kgs

Features:

  • Axial Exhaust Fan with Cone
  • High Pressure Die Casting Aluminium Blades ( HPDC )
  • Oval Shape Fan Blades
  • 40000 CFM (Cubic Feet Per Minute)
  • Iron Wire Guard front Side
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure

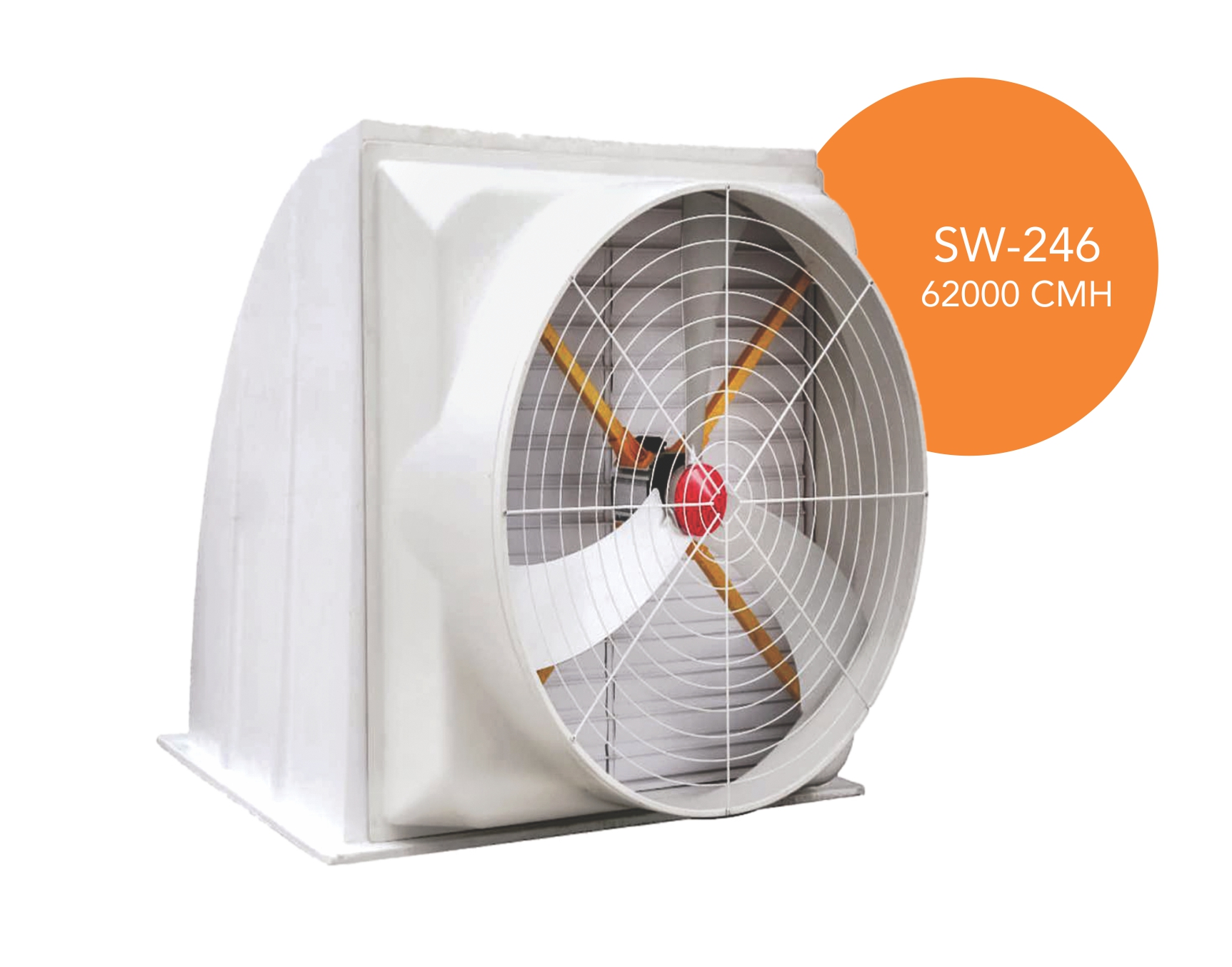

SW -246

Approx Price: Rs: 74,500.00

Product Details:

Fan Blade & Hub material
ADC 12
Air Flow
62000CMH (Cubic Meter Per Hour)
Motor
AC 580 RPM Heavy Duty Direct Driven
Voltage
415V, 3Ph.
Electric Load
1.8 Kw
Size
1460 X 1460 X 1180 mm
Noise (Db)
52
Hosing
Outer Cabinet SMC Fiber Glass
Motor draft Cover
PVC
Motor Make
ABB
Motor Legs
Fiber Glass Material
Exhaust Fan Shutter
PVC Material
Product wt.
77 Kgs

Features:

  • Axial Exhaust Fan with Cone
  • High Pressure Die Casting Aluminium Blades ( HPDC )
  • Oval Shape Fan Blades
  • Motor draft Cover .. PVC
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure
Get Best Quote
Get Best Quote

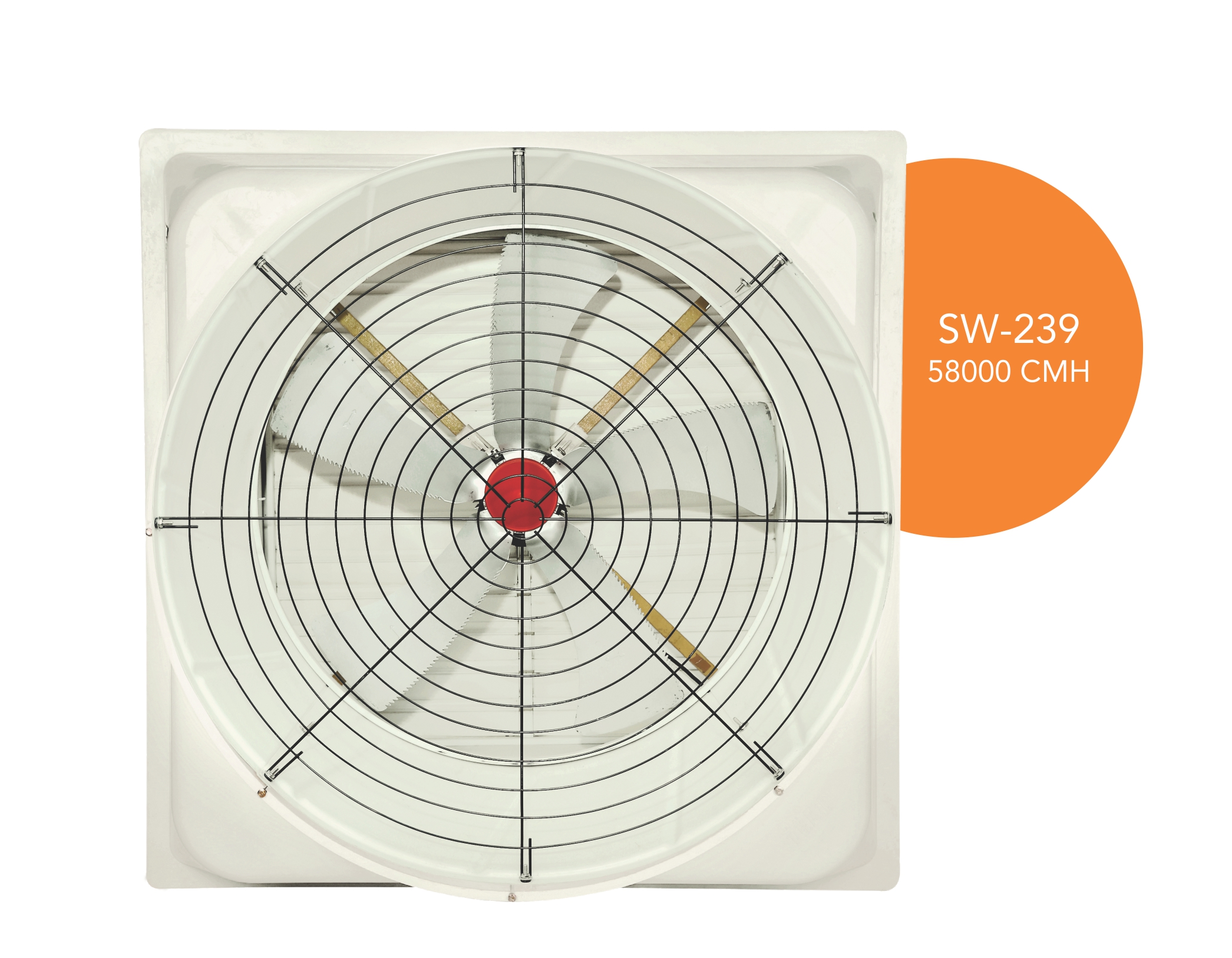

SW -239

Approx Price: 68,500.00

Product Details:

Fan Blade & Hub material
ADC 12 Oval Shape Fan Blades
Air Flow
58000CMH (Cubic Meter Per Hour) 34117 CFM (Cubic Feet Per Minute)
Motor
AC 630 RPM Heavy Duty Direct Driven
Voltage
415V, 3Ph.
Electric Load (kw)
1.6
Size
1260 X 1260 X 1060 mm
Noise
52 dB
Motor draft Cover
PVC
Motor Make
ABB
Motor legs
Fiber Glass Material
Exhaust Fan Shutter
PVC Material
Product wt.
65 Kgs
Hosing
Outer Cabinet SMC Fiber Glass

Features:

  • Axial Exhaust Fan with Cone
  • High Pressure Die Casting Aluminium Blades ( HPDC )
  • Oval Shape Fan Blades
  • 40000 CFM (Cubic Feet Per Minute)
  • Iron Wire Guard front Side
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure

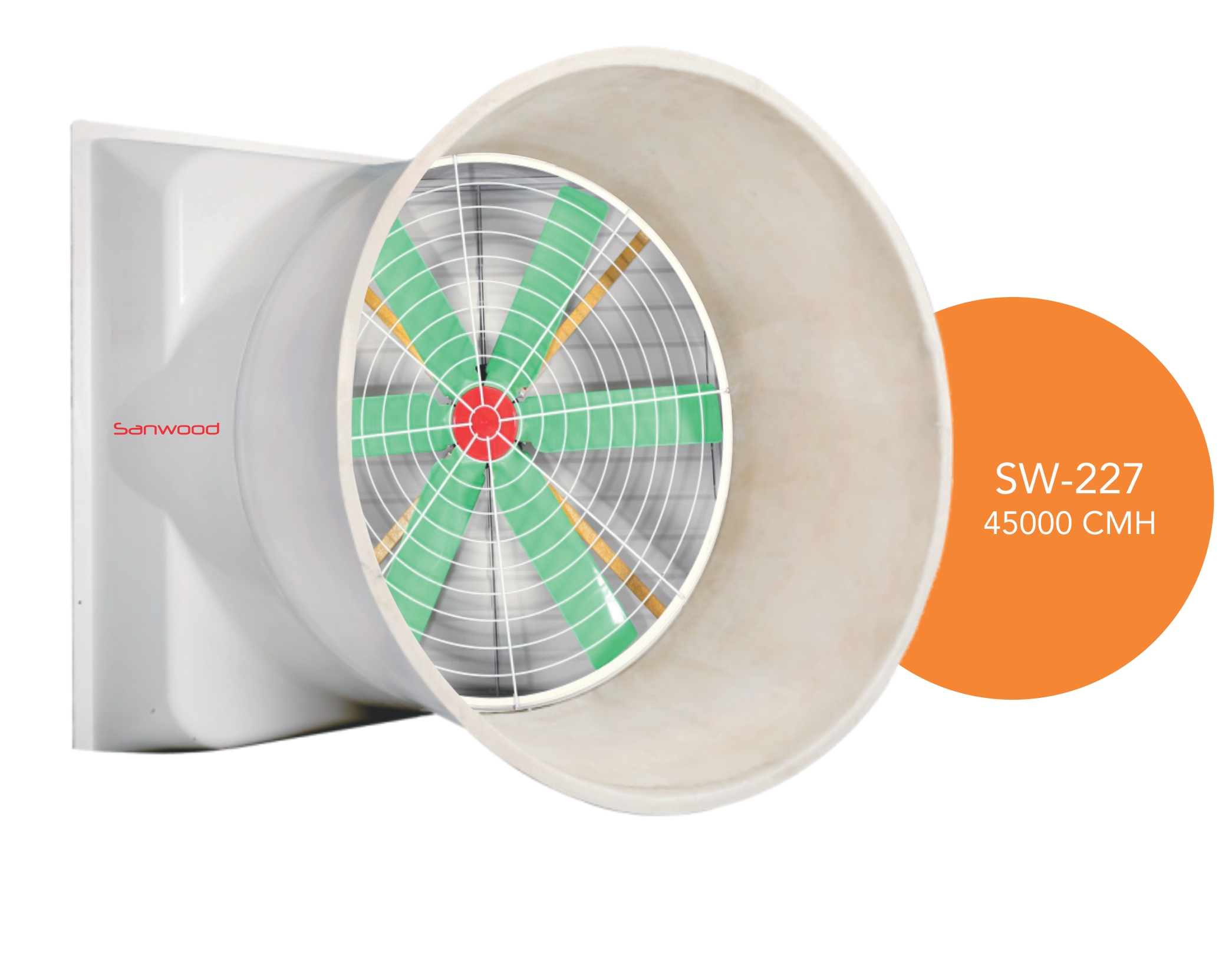

SW -227

Approx Price: Rs: 55,500.00

Product Details:

Fan Blade & Hub material
ADC 12
Air Flow
45000CMH (Cubic Meter Per Hour) 26470 CFM (Cubic Feet Per Minute)
Motor
AC 630 RPM Heavy Duty Direct Driven
Voltage
415/50 Electric load 750 Watts
Electric Load
1.2 Kw
Size
1060 X 1060 X 1010 mm
Noise (Db)
52
Hosing
Outer Cabinet SMC Fiber Glass Iron Wire Guard front Side
Motor draft Cover
PVC
Motor Make
ABB
Motor Legs
Fiber Glass Material
Exhaust Fan Shutter
PVC Material
Product wt.
47.50 Kgs

Features:

  • Axial Exhaust Fan with Cone
  • High Pressure Die Casting Aluminium Blades ( HPDC )
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure
Get Best Quote
Get Best Quote

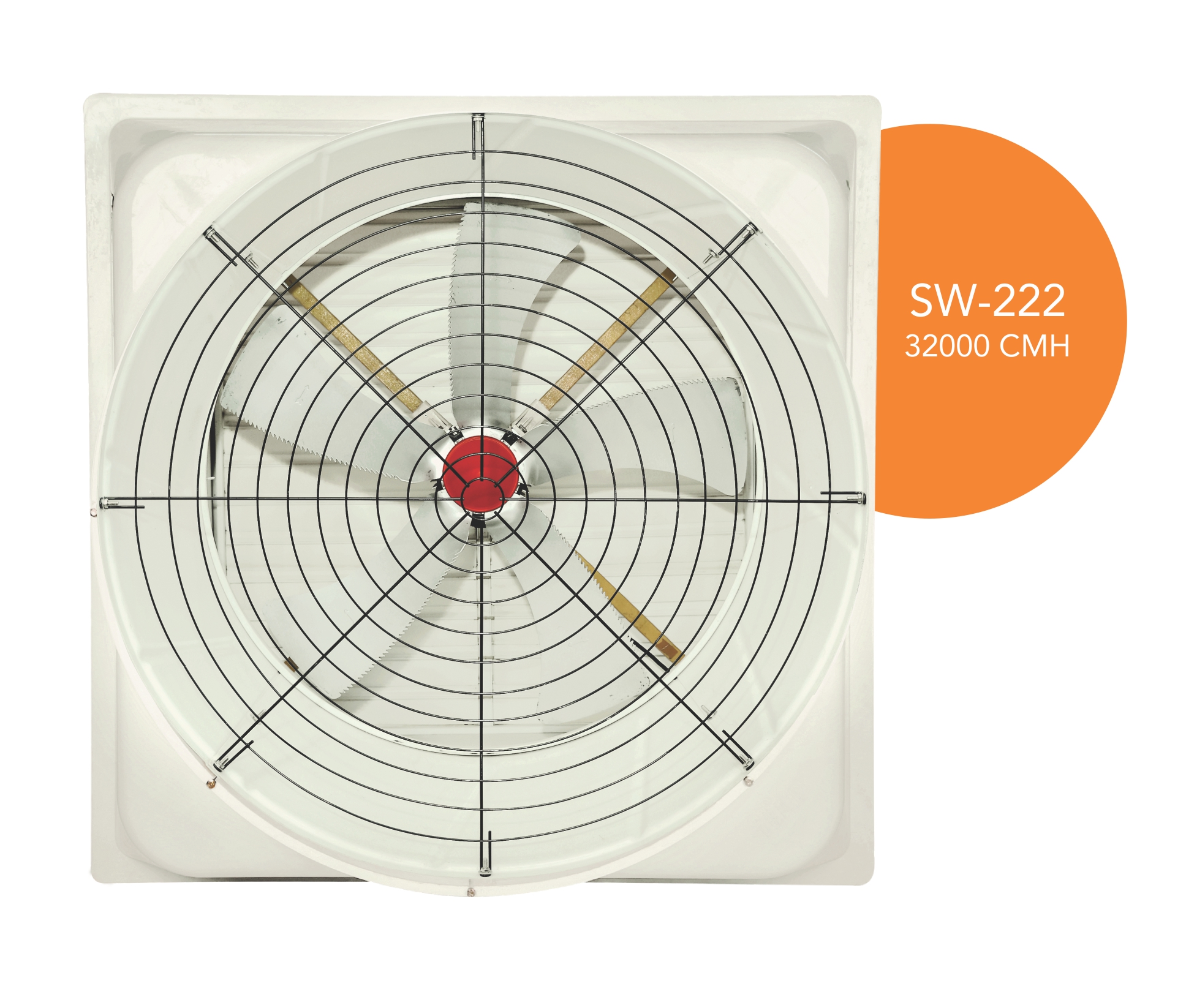

SW -222

Approx Price: 46,500.00

Product Details:

Fan Blade & Hub material
ADC 12 Oval Shape Fan Blades
Air Flow
32000 CMH (Cubic Meter Per Hour) 18823 CFM (Cubic Feet Per Minutes)
Motor
AC 630 RPM Heavy Duty Direct Driven
Voltage
415/50
Electric Load
900 watts
Size
850 X 850 X 930mm
Noise
52 dB
Motor Make
ABB
Motor legs
Fiber Glass Material
Exhaust Fan Shutter
PVC Material
Product wt.
31.5 Kg
Hosing
Outer Cabinet SMC Fiber Glass Iron Wire Guard front Side

Features:

  • Axial Exhaust Fan with Cone
  • High Pressure Die Casting Aluminium Blades ( HPDC )
  • Motor 100% Copper Winding and Aluminium Case Design with Heatsink

Note:

  • Freight Extra As per Actual
  • GST 18% Extra as per Applicable
  • Installation of Exhaust Fans
...Read More
Download Brochure
